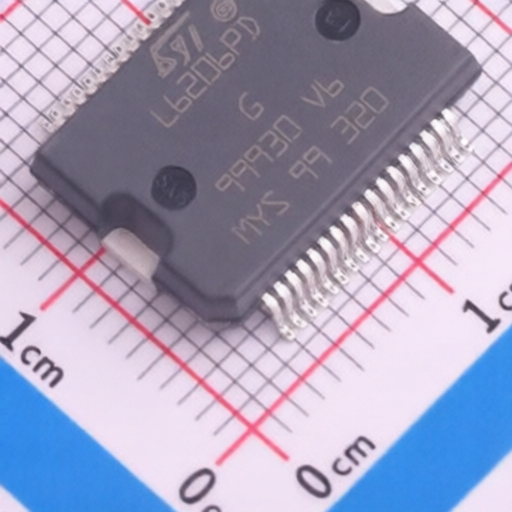

ST L6206PD

Name: ST L6206PD
Brand: ST

Manufacturer: ST

Mfr. Part #: L6206PD

Package: BSSOP-36-EP-11mm

Customer #:

Key Attributes: DMOS dual full bridge driver

Description: BSSOP-36-EP-11mm Full Half-Bridge (H Bridge) Drivers RoHS

Datasheet: ST L6206PD

Products Specifications

Category:

Integrated Circuits (ICs)/Power Management (PMIC)/Full Half-Bridge (H Bridge) Drivers

Manufacturer:

Package:

BSSOP-36-EP-11mm

Drive Type:

Bipolar Driver

Operating Temperature:

-40℃~+150℃

Technology:

Yes

RDS(on):

620mΩ

Number of H-bridges:

Output Current:

2.8A

Control Voltage:

Motor Drive Voltage(Vm):

8V~52V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	31
Sales Unit	Piece
