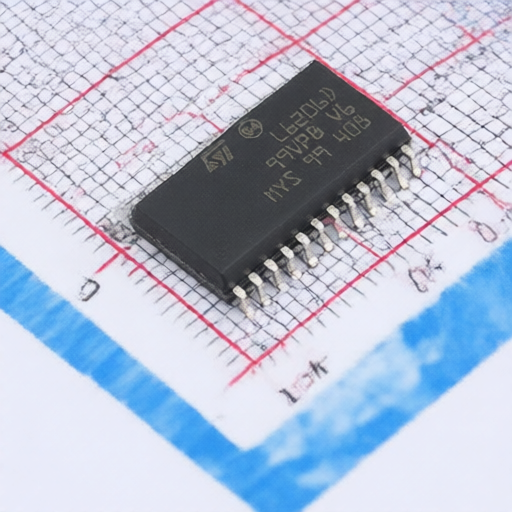

ST L6206D013TR

Name: ST L6206D013TR
Brand: ST

Manufacturer: ST

Mfr. Part #: L6206D013TR

Package: SO-24-300mil

Customer #:

Key Attributes: DMOS dual full bridge driver

Description: Full-Bridge MOSFET 7.1A SO-24-300mil Full Half-Bridge (H Bridge) Drivers RoHS

Datasheet: ST L6206D013TR

Products Specifications

Category:

Integrated Circuits (ICs)/Power Management (PMIC)/Full Half-Bridge (H Bridge) Drivers

Manufacturer:

Package:

SO-24-300mil

Operating Temperature:

-40℃~+150℃

Driven Configuration:

Full-Bridge

Features:

Under Voltage Protection;Over Current Protection;Over Temperature Protection

Quiescent Current:

5mA

Load Type:

MOSFET

Current - Output High(IOH):

Input Voltage:

8V~52V

Propagation Delay tpLH:

100ns;300ns

Current - Output Low(IOL):

7.1A

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1000
Sales Unit	Piece
