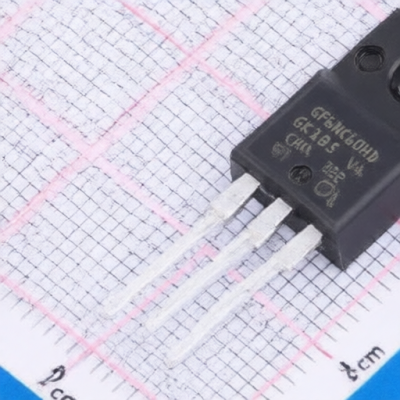

ST STGF6NC60HD
Manufacturer:
ST
Mfr. Part #:
STGF6NC60HD
Package:
TO-220-3
Customer #:
Key Attributes:
IGBT 600V TO-220-3
Description:
IGBT 600V 25W Through Hole TO-220-3
Products Specifications
Manufacturer:
Package:
TO-220-3
Td(off):
76ns
Pd - Power Dissipation:
25W
Operating Temperature:
-55℃~+150℃
Td(on):
12ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
5.5pF
Input Capacitance(Cies):
205pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.75V@250uA
Gate Charge(Qg):
13.6nC@15V
Output Capacitance(Coes):
32pF
Reverse Recovery Time(trr):
21ns
Switching Energy(Eoff):
68uJ
Turn-On Energy (Eon):
20uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
