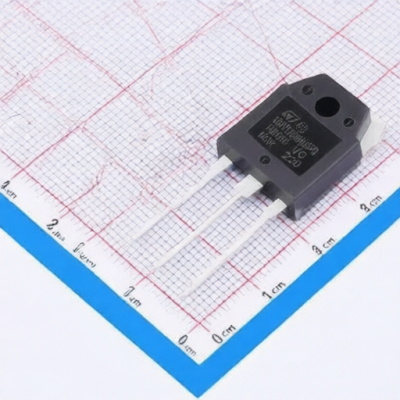

ST STGWT30H60DFB
Manufacturer:
ST
Mfr. Part #:
STGWT30H60DFB
Package:
TO-3P
Customer #:
Key Attributes:
IGBT 600V 60A TO-3P
Description:
IGBT FS (Field Stop) 600V 60A 260W Through Hole TO-3P
Products Specifications
Manufacturer:
Package:
TO-3P
Td(off):
146ns
Pd - Power Dissipation:
260W
Td(on):
37ns
Operating Temperature:
-55℃~+175℃@(Tj)
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
76pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@1mA
Gate Charge(Qg):
149nC
Reverse Recovery Time(trr):
53ns
Switching Energy(Eoff):
293uJ
Turn-On Energy (Eon):
383uJ
Input Capacitance(Cies):
3.659nF
Pulsed Current- Forward(Ifm):
120A
Output Capacitance(Coes):
101pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
