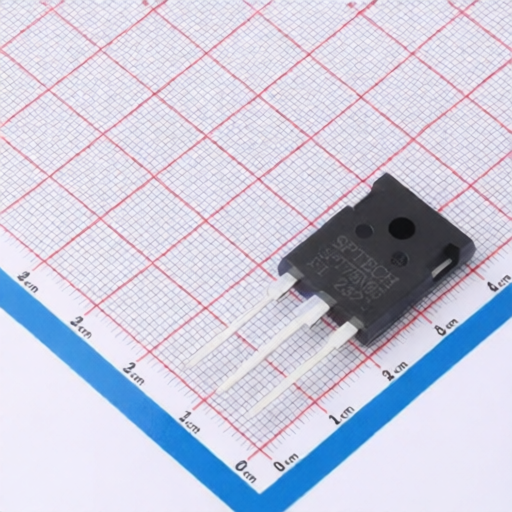

SPTECH SPT75N65F1
Manufacturer:
SPTECH
Asian Brands
Mfr. Part #:
SPT75N65F1
Package:
TO-247-3
Customer #:
Key Attributes:
IGBT 650V TO-247-3
Description:
IGBT FS (Field Stop) 650V Through Hole TO-247-3
Datasheet:
SPTECH SPT75N65F1
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
660ns
Pd - Power Dissipation:
416W
Td(on):
110ns
Operating Temperature:
-40℃~+150℃
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
100pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.6V@250uA
Gate Charge(Qg):
260nC@15V
Reverse Recovery Time(trr):
75ns
Switching Energy(Eoff):
8.4mJ
Turn-On Energy (Eon):
4.3mJ
Input Capacitance(Cies):
4.5nF
Output Capacitance(Coes):
200pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
SPTECH
855 Products
Shenzhen sptech is a high-tech enterprise specializing in the development, design, production and sales of power devices. Since its establishment in 2003, it has been continuously innovating in technology, introducing talents and equipment for 16 years to ensure that each product meets the highest standards in the industry. The independent brand "Shenzhen Quality Super sptech" is recognized by the customers of famous foreign enterprises with excellent quality and strong technical support. Our products meet RoHS EU and EU CE environmental protection standards. Shenzhen Quality Super sptech strives to become one of the most important power device manufacturers in the world.
