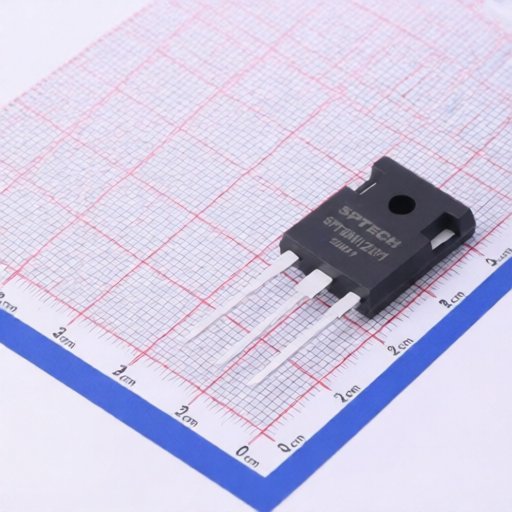

SPTECH SPT20N120F1
Manufacturer:
SPTECH
Asian Brands
Mfr. Part #:
SPT20N120F1
Package:
TO-247-3
Customer #:
Key Attributes:
IGBT 1.2kV 40A TO-247-3
Description:
IGBT FS (Field Stop) 1.2kV 40A 208W Through Hole TO-247-3
Datasheet:
SPTECH SPT20N120F1
Products Specifications
Manufacturer:
Package:
TO-247-3
Pd - Power Dissipation:
208W
Td(off):
300ns
Operating Temperature:
-40℃~+150℃
Td(on):
60ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.2V@0.25mA
Gate Charge(Qg):
140nC@15V
Reverse Recovery Time(trr):
270ns
Switching Energy(Eoff):
430uJ
Turn-On Energy (Eon):
2.5mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
SPTECH
855 Products
Shenzhen sptech is a high-tech enterprise specializing in the development, design, production and sales of power devices. Since its establishment in 2003, it has been continuously innovating in technology, introducing talents and equipment for 16 years to ensure that each product meets the highest standards in the industry. The independent brand "Shenzhen Quality Super sptech" is recognized by the customers of famous foreign enterprises with excellent quality and strong technical support. Our products meet RoHS EU and EU CE environmental protection standards. Shenzhen Quality Super sptech strives to become one of the most important power device manufacturers in the world.
