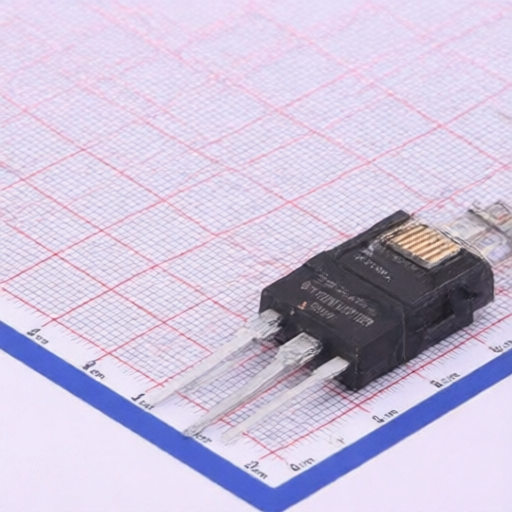

SPTECH SPT40N120T1B1
Manufacturer:
SPTECH
Asian Brands
Mfr. Part #:
SPT40N120T1B1
Package:
TO-247-3
Customer #:
Key Attributes:
IGBT 1.2kV 40A TO-247-3
Description:
IGBT FS (Field Stop) 1.2kV 40A 416W Through Hole TO-247-3
Datasheet:
SPTECH SPT40N120T1B1
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
230ns
Pd - Power Dissipation:
416W
Operating Temperature:
-40℃~+150℃
Td(on):
55ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
4.4nF@25V
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.1V@250uA
Gate Charge(Qg):
270nC@15V
Reverse Recovery Time(trr):
190ns
Switching Energy(Eoff):
1.5mJ
Turn-On Energy (Eon):
2.4mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
