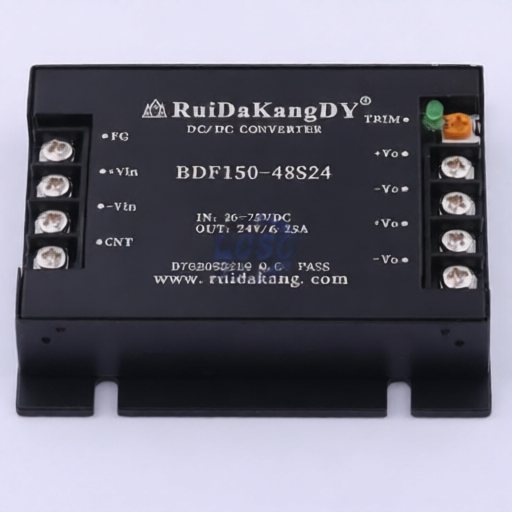

ruidakangDY BDF150-48S24
Manufacturer:
ruidakangDY
Asian Brands
Mfr. Part #:
BDF150-48S24
Package:
Screw Terminals
Customer #:
Key Attributes:
Easy-install Power Supply, wide voltage input and output, high isolation voltage, wide operating temperature range
Description:
Screw Terminals DC DC Converters RoHS
Datasheet:
ruidakangDY BDF150-48S24
Products Specifications
Manufacturer:
Package:
Screw Terminals
Number of Outputs:
3
Height:
17mm
Ripple:
50mVp-p
Length:
81.5mm
Width:
68mm
Vin:
36V~72V
Vout:
24V
Operating Temperature:
-40℃~+85℃
Frequency - Switching:
260kHz
Isolation Voltage(Vrms):
1.5kV
Conversion Efficiency:
90%
Capacitive Load(Max):
1000uF
Features:
Over Current Protection;Short Circuit Protection;Under Voltage Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
