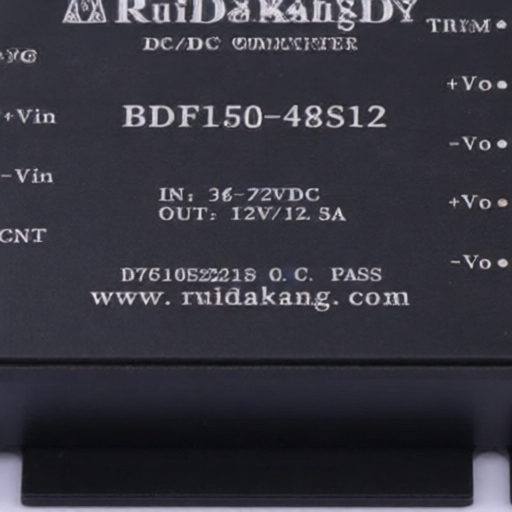

ruidakangDY BDF150-48S12
Manufacturer:
ruidakangDY
Asian Brands
Mfr. Part #:
BDF150-48S12
Package:
Screw Terminals
Customer #:
Key Attributes:
Easy-install Power Supply, wide voltage input and output, high isolation voltage, wide operating temperature range
Description:
Isolated Module DC DC Converter 12V 12.5A 36V~72V Input
Datasheet:
ruidakangDY BDF150-48S12
Products Specifications
Manufacturer:
Package:
Screw Terminals
Height:
17mm
Ripple:
100mVp-p
Length:
81.5mm
Iout:
12.5A
Width:
68mm
Vin:
36V~72V
Vout:
12V
Operating Temperature:
-40℃~+85℃
Frequency - Switching:
260kHz
Output Power:
150W
Conversion Efficiency:
90%
Capacitive Load(Max):
2200uF
Features:
Over Current Protection;Short Circuit Protection;Over Voltage Protection;Under Voltage Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 10 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
