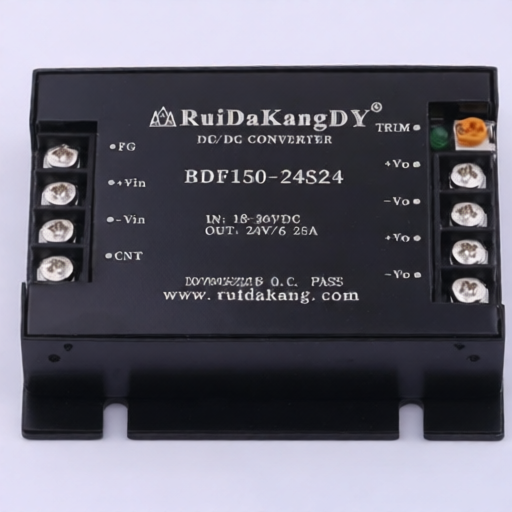

ruidakangDY BDF150-24S24
Manufacturer:
ruidakangDY
Asian Brands
Mfr. Part #:
BDF150-24S24
Package:
Screw Terminals
Customer #:
Key Attributes:
Easy-install Power Supply, wide voltage input and output, high isolation voltage, wide operating temperature range
Description:
Isolated Module DC DC Converter 24V 4.17A 18V~36V Input
Datasheet:
ruidakangDY BDF150-24S24
Products Specifications
Manufacturer:
Package:
Screw Terminals
Height:
17mm
Ripple:
100mVp-p
Length:
81.5mm
Iout:
4.17A
Width:
68mm
Vin:
18V~36V
Vout:
24V
Operating Temperature:
-40℃~+85℃
Frequency - Switching:
260kHz
Conversion Efficiency:
90%
Capacitive Load(Max):
1000uF
Features:
Over Current Protection;Short Circuit Protection;Over Voltage Protection;Under Voltage Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ruidakangDY
132 Products
Beijing Ruidakang Technology Co., Ltd.
(hereinafter referred to as "RuiDaKangDY") was established in 2011. It is a high-tech enterprise focusing on the research and development and production of power products. The company's main products include DC/DC power modules, AC/DC power modules, DC/AC bell current converters, portable integrated power modules, etc., which are widely used in aerospace, post and telecommunications, instrumentation, railway measurement and control and other fields. RuiDaKangDY always adheres to the implementation of ISO9001-2015 quality system certification and GJB9001C-2017 quality system certification standards, with the spirit of innovation, truth-seeking and refinement, to provide customers with high-standard, high-quality and high-reliability power supplies.
