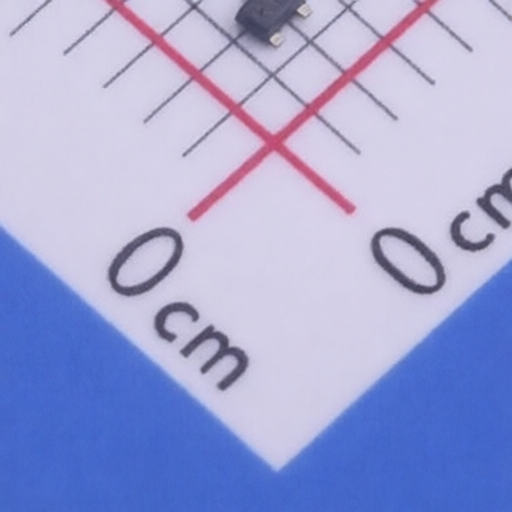

PANJIT PJV1702_R1_00001
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
PJV1702_R1_00001
Package:
SOT-723-3
Customer #:
Description:
20V 650mA 800mΩ@1.8V 350mV 1 N-channel 150mW SOT-723-3 Single FETs, MOSFETs RoHS
Datasheet:
PANJIT PJV1702_R1_00001
Products Specifications
Manufacturer:
Package:
SOT-723-3
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
650mA
Operating Temperature -:
-55℃~+150℃
RDS(on):
800mΩ@1.8V
Gate Threshold Voltage (Vgs(th)):
350mV
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
12pF@16V
Number:
1 N-channel
Input Capacitance(Ciss):
62pF@16V
Pd - Power Dissipation:
150mW
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 8000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
