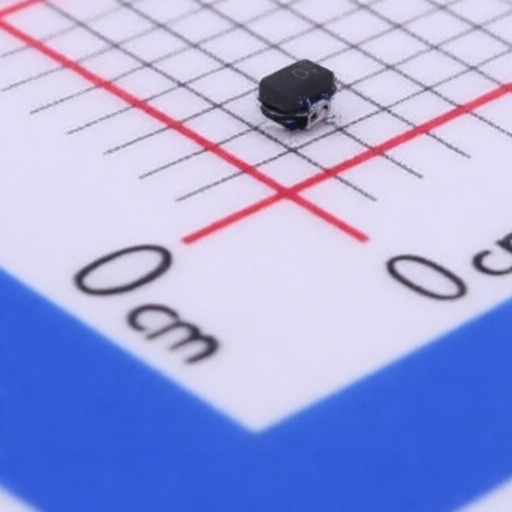

PANJIT PJQ1900_R1_00001
Manufacturer:
PANJIT
Asian Brands
Mfr. Part #:
PJQ1900_R1_00001
Package:
DFN-3L(0.6x1)
Customer #:
Key Attributes:
MOSFET N-CH 20V 2A DFN-3L(0.6x1)
Description:
N-Channel 20V 2A 900mW Surface Mount DFN-3L(0.6x1)
Datasheet:
PANJIT PJQ1900_R1_00001
Products Specifications
Manufacturer:
Package:
DFN-3L(0.6x1)
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
2A
Operating Temperature -:
-55℃~+150℃
RDS(on):
3Ω@1.2V
Gate Threshold Voltage (Vgs(th)):
900mV@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
-
Number:
1 N-channel
Input Capacitance(Ciss):
67pF@10V
Pd - Power Dissipation:
900mW
Gate Charge(Qg):
1.4nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 8000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
