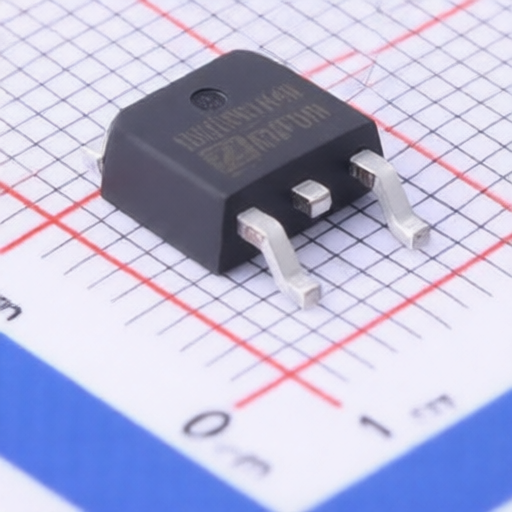

ORIENTAL SEMI OSG80R1K4DF

ORIENTAL SEMI OSG80R1K4DF

Name: ORIENTAL SEMI OSG80R1K4DF
Brand: ORIENTAL SEMI

Manufacturer: ORIENTAL SEMI Asian Brands

Mfr. Part #: OSG80R1K4DF

Package: TO-252

Customer #:

Key Attributes: MOSFET N-CH 800V 4A TO-252

Description: N-Channel 800V 4A 37W Surface Mount TO-252

Datasheet: ORIENTAL SEMI OSG80R1K4DF

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

ORIENTAL SEMI

Package:

TO-252

Drain to Source Voltage:

800V

Current - Continuous Drain(Id):

Operating Temperature -:

-55℃~+150℃@(Tj)

RDS(on):

1.1Ω@10V,2A

Gate Threshold Voltage (Vgs(th)):

Reverse Transfer Capacitance (Crss@Vds):

1.35pF@50V

Number:

1 N-channel

Input Capacitance(Ciss):

363.5pF@50V

Pd - Power Dissipation:

37W

Gate Charge(Qg):

7.5nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	2500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
