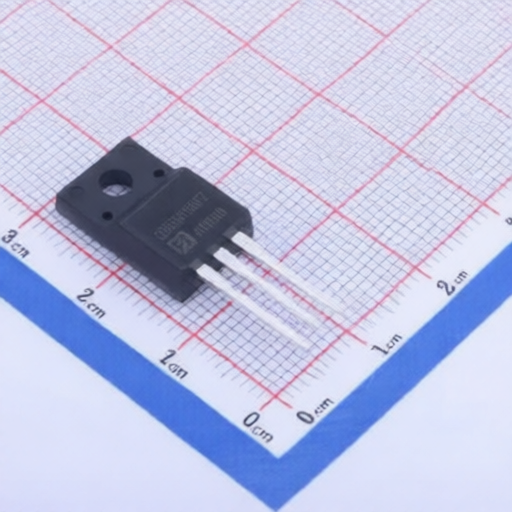

ORIENTAL SEMI OSG55R160FZF

ORIENTAL SEMI OSG55R160FZF

Name: ORIENTAL SEMI OSG55R160FZF
Brand: ORIENTAL SEMI

Manufacturer: ORIENTAL SEMI Asian Brands

Mfr. Part #: OSG55R160FZF

Package: TO-220F-3

Customer #:

Key Attributes: N-Channel, Current:23A, Voltage:550V

Description: 550V 23A 160mΩ@10V 4.5V@250uA 34W TO-220F-3 Single FETs, MOSFETs RoHS

Datasheet: ORIENTAL SEMI OSG55R160FZF

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

ORIENTAL SEMI

Package:

TO-220F-3

Drain to Source Voltage:

550V

Current - Continuous Drain(Id):

23A

Operating Temperature -:

-55℃~+150℃

RDS(on):

160mΩ@10V

Gate Threshold Voltage (Vgs(th)):

4.5V@250uA

Reverse Transfer Capacitance (Crss@Vds):

2.9pF

Number:

Output Capacitance(Coss):

145.8pF

Input Capacitance(Ciss):

1.511nF

Pd - Power Dissipation:

34W

Gate Charge(Qg):

21.3nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	50
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
