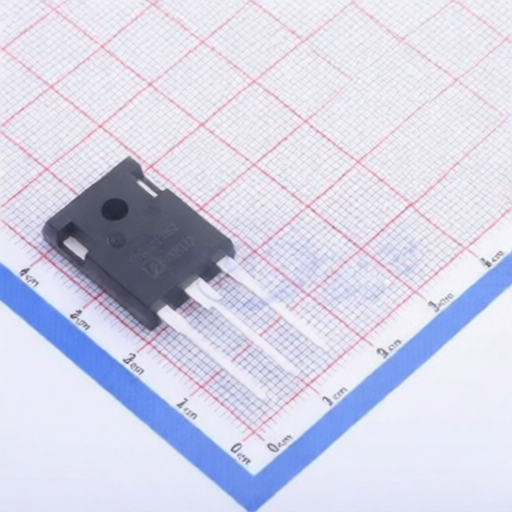

ORIENTAL SEMI OSG55R074HSZF
Manufacturer:
ORIENTAL SEMI
Asian Brands
Mfr. Part #:
OSG55R074HSZF
Package:
TO-247-3
Customer #:
Key Attributes:
Enhancement Mode N-Channel Power MOSFET, Current: 47A, Voltage: 550V
Description:
600V 47A 74mΩ@10V 4.5V@1mA 278W TO-247-3 Single FETs, MOSFETs RoHS
Datasheet:
ORIENTAL SEMI OSG55R074HSZF
Products Specifications
Manufacturer:
Package:
TO-247-3
Drain to Source Voltage:
600V
Current - Continuous Drain(Id):
47A
Operating Temperature -:
-55℃~+150℃
RDS(on):
74mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4.5V@1mA
Reverse Transfer Capacitance (Crss@Vds):
9.3pF@50V
Number:
-
Input Capacitance(Ciss):
3.9155nF
Pd - Power Dissipation:
278W
Gate Charge(Qg):
67.7nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ORIENTAL SEMI
59 Products
Oriental Semiconductor was established in 2008 with a registered capital of 47,582,182 million yuan. It is a technology-driven semiconductor technology company. It has deep technology accumulation in the field of semiconductor core technology devices, focusing on semiconductor device technology innovation, and has a number of semiconductor device cores patent.
