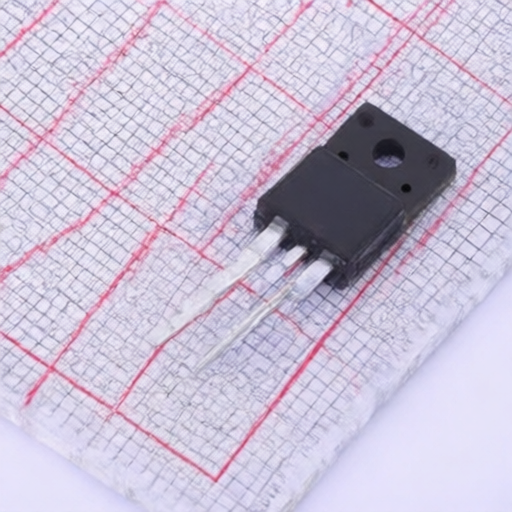

ORIENTAL SEMI OSG80R300FF
Manufacturer:
ORIENTAL SEMI
Asian Brands
Mfr. Part #:
OSG80R300FF
Package:
TO-220F
Customer #:
Description:
800V 15A 300mΩ@10V,7.5A 3.9V 1 N-channel 34W TO-220F Single FETs, MOSFETs RoHS
Datasheet:
ORIENTAL SEMI OSG80R300FF
Products Specifications
Manufacturer:
Package:
TO-220F
Drain to Source Voltage:
800V
Current - Continuous Drain(Id):
15A
RDS(on):
300mΩ@10V,7.5A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
3.9V
Reverse Transfer Capacitance (Crss@Vds):
2.1pF
Number:
1 N-channel
Pd - Power Dissipation:
34W
Input Capacitance(Ciss):
1.552nF
Gate Charge(Qg):
23.3nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
