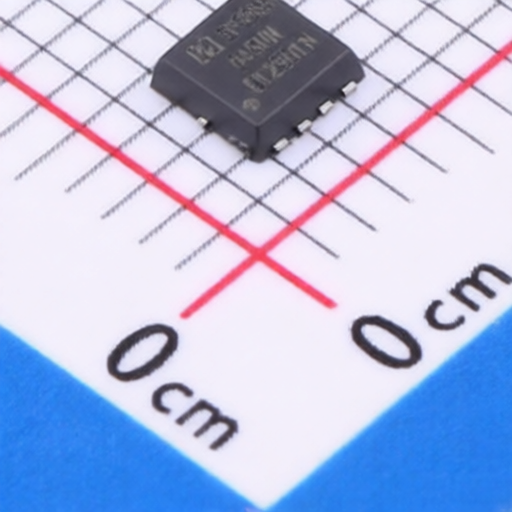

ORIENTAL SEMI SFS06R045UNF
Manufacturer:
ORIENTAL SEMI
Asian Brands
Mfr. Part #:
SFS06R045UNF
Package:
PDFN3.3x3.3-8
Customer #:
Key Attributes:
MOSFET N-CH 60V 60A PDFN3.3x3.3-8
Description:
N-Channel 60V 60A 31W PDFN3.3x3.3-8
Datasheet:
ORIENTAL SEMI SFS06R045UNF
Products Specifications
Manufacturer:
Package:
PDFN3.3x3.3-8
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
60A
RDS(on):
4.5mΩ@10V,20A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.4V
Reverse Transfer Capacitance (Crss@Vds):
50.6pF@25V
Number:
1 N-channel
Input Capacitance(Ciss):
2.11nF
Pd - Power Dissipation:
31W
Gate Charge(Qg):
31.3nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
