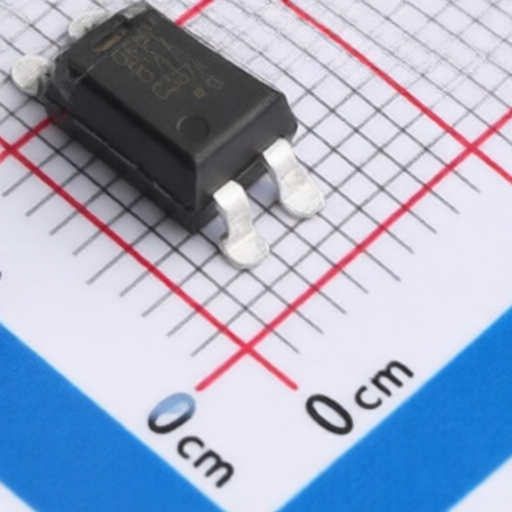

Orient ORPC-814SA-TP-C-G-(GK)
Manufacturer:
Orient
Asian Brands
Mfr. Part #:
ORPC-814SA-TP-C-G-(GK)
Package:
SOP-4
Customer #:
Key Attributes:
Photocoupler
Description:
50mA 100mV@20mA,1mA 80V AC,DC SOP-4 Transistor, Photovoltaic Output Optoisolators RoHS
Datasheet:
Orient ORPC-814SA-TP-C-G-(GK)
Products Specifications
Manufacturer:
Package:
SOP-4
Output Current:
50mA
Rise time:
2.9us
Fall time:
4.5us
Vce Saturation(VCE(sat)):
100mV@20mA,1mA
Operating Temperature:
-55℃~+125℃
Load Voltage:
80V
Load Type:
Phototransistor
Current transfer ratio:
300%;20%
Forward Current(If):
50mA
Input type:
AC,DC
Isolation Voltage(Vrms):
5kV
Number of Channels:
1
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
