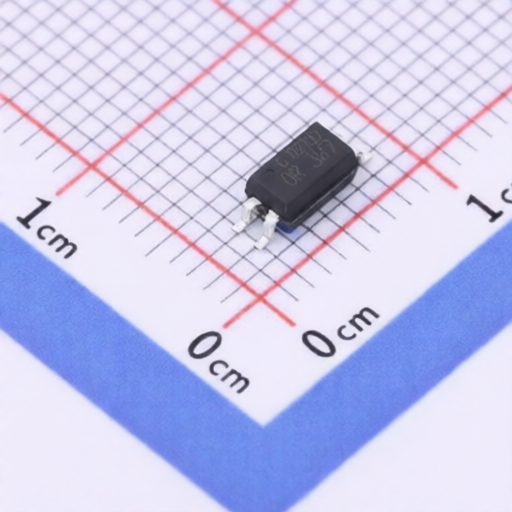

Orient OR-3H7D-TP-G
Manufacturer:
Orient
Asian Brands
Mfr. Part #:
OR-3H7D-TP-G
Package:
SOP-4-1.27mm
Customer #:
Key Attributes:
OPTOISOLATOR 3.75kV 1CH TRANS SOP-4-1.27mm
Description:
Phototransistor Output 3.75kVrms 1 Channel SOP-4-1.27mm
Datasheet:
Orient OR-3H7D-TP-G
Products Specifications
Manufacturer:
Package:
SOP-4-1.27mm
Rise time:
4us@2mA,100Ω
Output Current:
50mA
Fall time:
3us@2mA,100Ω
Vce Saturation(VCE(sat)):
100mV@1mA,20mA
Operating Temperature:
-55℃~+110℃
Load Voltage:
80V
Reverse Voltage:
6V
Load Type:
Phototransistor
Input type:
DC
Isolation Voltage(Vrms):
3.75kV
Number of Channels:
1
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Orient
117 Products
Orient, founded in 1998, is a national high-tech enterprise specializing in the research, development, and manufacturing of optoelectronic wafers and optocouplers. It possesses core chip technology and has a complete IDM industrial chain structure. The company mainly produces optocouplers, isolated drivers, and sensors.
