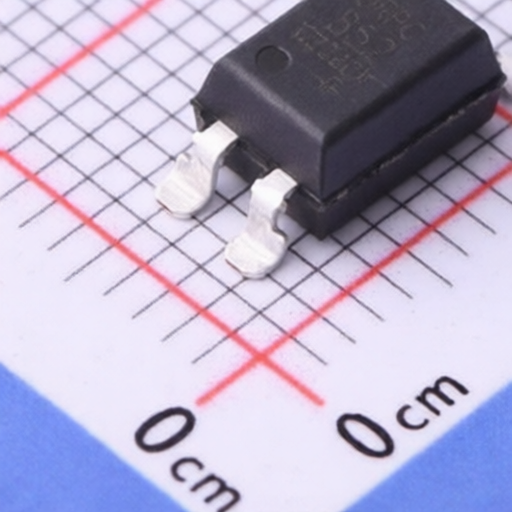

Orient ORPC-852S-TP-C
Manufacturer:
Orient
Asian Brands
Mfr. Part #:
ORPC-852S-TP-C
Package:
SOP-4-2.54mm
Customer #:
Key Attributes:
Photo coupler
Description:
150mA 1.2V@20mA,100mA 350V 6V DC SOP-4-2.54mm Transistor, Photovoltaic Output Optoisolators RoHS
Datasheet:
Orient ORPC-852S-TP-C
Products Specifications
Manufacturer:
Package:
SOP-4-2.54mm
Output Current:
150mA
Rise time:
40us
Fall time:
15us
Vce Saturation(VCE(sat)):
1.2V@20mA,100mA
Operating Temperature:
-50℃~+110℃
Load Voltage:
350V
Reverse Voltage:
6V
Current transfer ratio:
15000%;1000%
Forward Current(If):
60mA
Pd - Power Dissipation:
200mW
Number of Channels:
1
Load Type:
Darlington Transistor
Input type:
DC
Isolation Voltage(Vrms):
5kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Orient
117 Products
Orient, founded in 1998, is a national high-tech enterprise specializing in the research, development, and manufacturing of optoelectronic wafers and optocouplers. It possesses core chip technology and has a complete IDM industrial chain structure. The company mainly produces optocouplers, isolated drivers, and sensors.
