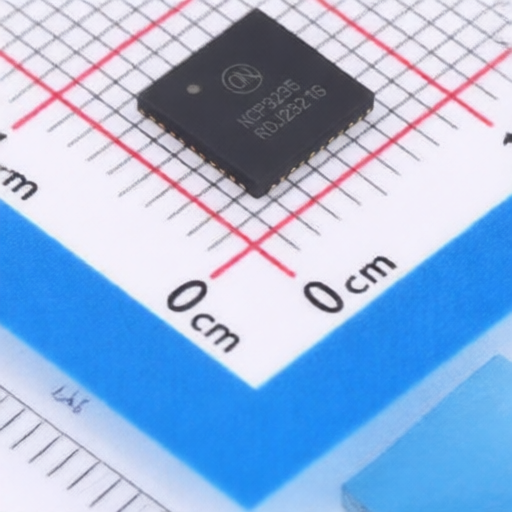

onsemi NCP3235MNTXG
Manufacturer:
onsemi
Mfr. Part #:
NCP3235MNTXG
Package:
QFN-40-EP(6x6)
Customer #:
Key Attributes:
High Efficiency, High Current Synchronous Buck Converter
Description:
550kHz~1.1MHz Buck Adjustable 600mV~21V 15A QFN-40-EP(6x6) Voltage Regulators - DC DC Switching Regulators RoHS
Datasheet:
onsemi NCP3235MNTXG
Products Specifications
Category:
Manufacturer:
Package:
QFN-40-EP(6x6)
Operating Temperature:
-40℃~+85℃
Frequency - Switching:
550kHz~1.1MHz
Function:
Buck
Number of Outputs:
1
Output Type:
Adjustable
Topology:
Buck
Operating Voltage:
4.5V~23V
Switch tube (built-in/external):
Built-in
Output Voltage:
600mV~21V
Output Current:
15A
Quiescent Current:
4.7mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
