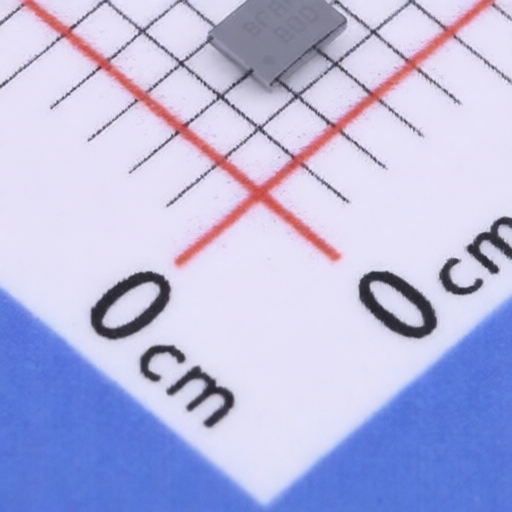

onsemi FAN53555UC04X
Manufacturer:
onsemi
Mfr. Part #:
FAN53555UC04X
Package:
WLCSP-20(1.6x2)
Customer #:
Key Attributes:
2.4MHz Fixed Frequency Buck Switching Regulator
Description:
Buck Switching Regulator IC Adjustable 0.603V~1.411V 1 Output 5A WLCSP-20(1.6x2)
Datasheet:
onsemi FAN53555UC04X
Products Specifications
Category:
Manufacturer:
Package:
WLCSP-20(1.6x2)
Operating Temperature:
-40℃~+125℃
Frequency - Switching:
2.4MHz
Function:
Buck
Number of Outputs:
1
Output Type:
Adjustable
Topology:
Buck
Operating Voltage:
2.5V~5.5V
Switch tube (built-in/external):
Built-in
Output Current:
5A
Output Voltage:
603mV~1.411V
Quiescent Current:
60uA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
