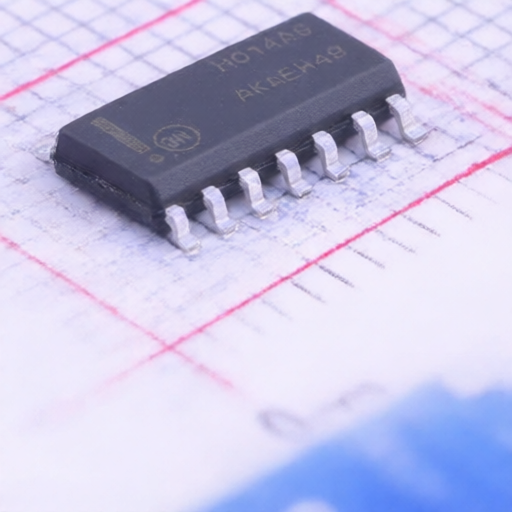

onsemi MC74HC14ADR2G
Manufacturer:
onsemi
Mfr. Part #:
MC74HC14ADR2G
Package:
SOIC-14
Customer #:
Key Attributes:
Hex Schmitt-Trigger Inverter
Description:
Schmitt trigger 13ns@6V,50pF 1uA 2V~6V SOIC-14 Gates and Inverters RoHS
Datasheet:
onsemi MC74HC14ADR2G
Products Specifications
Manufacturer:
Package:
SOIC-14
Operating Temperature:
-55℃~+125℃
Logic Family:
74HC Series
Input Type:
Schmitt trigger
Propagation Delay:
13ns@6V,50pF
Quiescent Current(Iq):
1uA
Input Logic Level -Low:
300mV~1.2V
Voltage - Supply:
2V~6V
Number of Channels:
6;1
Current - Output High(IOH):
5.2mA
Current - Output Low(IOL):
5.2mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
