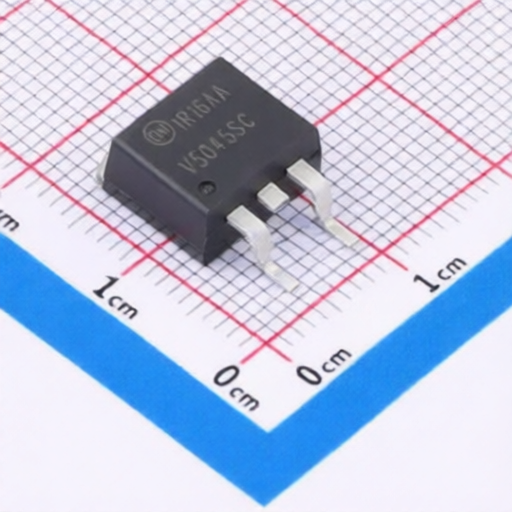

onsemi ISL9V5045S3ST-F085C
Manufacturer:
onsemi
Mfr. Part #:
ISL9V5045S3ST-F085C
Package:
D2PAK-3
Customer #:
Key Attributes:
IGBT 480V 51A D2PAK-3
Description:
IGBT 480V 51A 300W Surface Mount D2PAK-3
Datasheet:
onsemi ISL9V5045S3ST-F085C
Products Specifications
Manufacturer:
Package:
D2PAK-3
Td(off):
10.8us
Pd - Power Dissipation:
300W
Td(on):
700ns
Collector-Emitter Breakdown Voltage (Vces):
480V
Input Capacitance(Cies):
-
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
1.3V@1mA
Gate Charge(Qg):
32nC@5V
Operating Temperature:
-40℃~+175℃@(Tj)
Turn-On Energy (Eon):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
