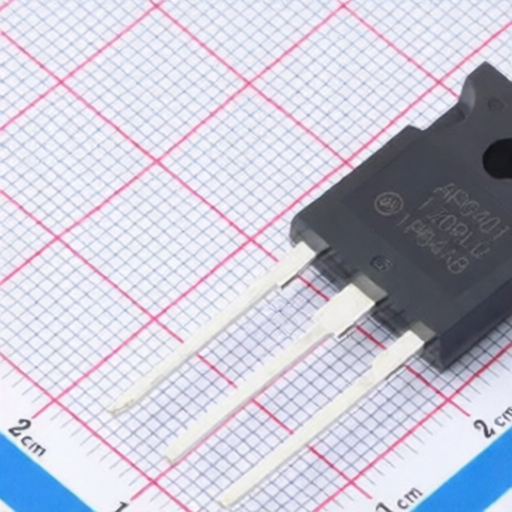

onsemi AFGHL40T120RLD
Manufacturer:
onsemi
Mfr. Part #:
AFGHL40T120RLD
Package:
TO-247-3
Customer #:
Description:
529W 1.2kV FS (Field Stop) TO-247-3 Single IGBTs RoHS
Datasheet:
onsemi AFGHL40T120RLD
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
208ns
Pd - Power Dissipation:
529W
Td(on):
48ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Input Capacitance(Cies):
-
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
Gate Charge(Qg):
395nC
Operating Temperature:
-55℃~+175℃@(Tj)
Reverse Recovery Time(trr):
195ns
Switching Energy(Eoff):
1.2mJ
Turn-On Energy (Eon):
3.4mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
