onsemi HGTG30N60B3_NL
Manufacturer:
onsemi
Mfr. Part #:
HGTG30N60B3_NL

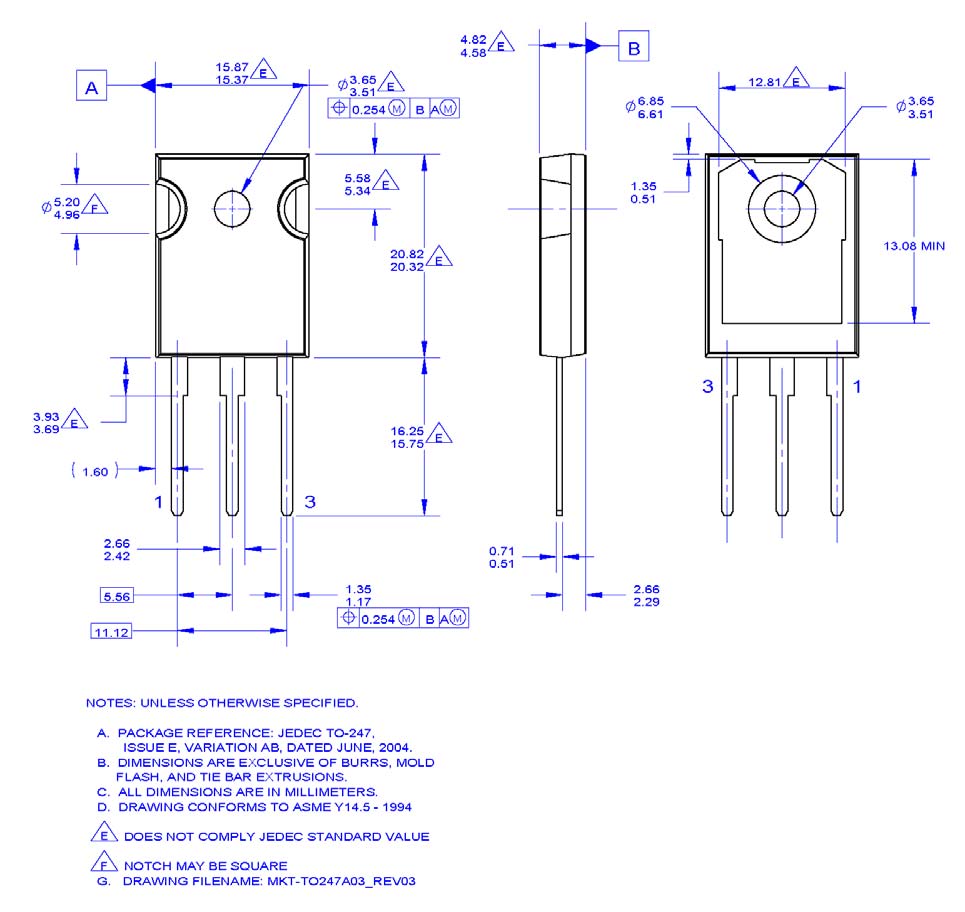

Package:
TO-247
Customer #:
Description:
208W 600V NPT (Non-Punch Through) TO-247 Single IGBTs RoHS
Datasheet:
onsemi HGTG30N60B3_NL
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
137ns
Pd - Power Dissipation:
208W
Td(on):
36ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Input Capacitance(Cies):
-
IGBT Type:
NPT (Non-Punch Through)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
-
Gate Charge(Qg):
250nC
Operating Temperature:
-55℃~+150℃@(Tj)
Switching Energy(Eoff):
680uJ
Turn-On Energy (Eon):
550uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
onsemi
19033 Products
onsemi, founded in 1999, has become one of the world's leading semiconductor solution providers through acquisitions and organic growth. It primarily produces power management, analog signal processing, logic ICs, discrete components, and sensors.
