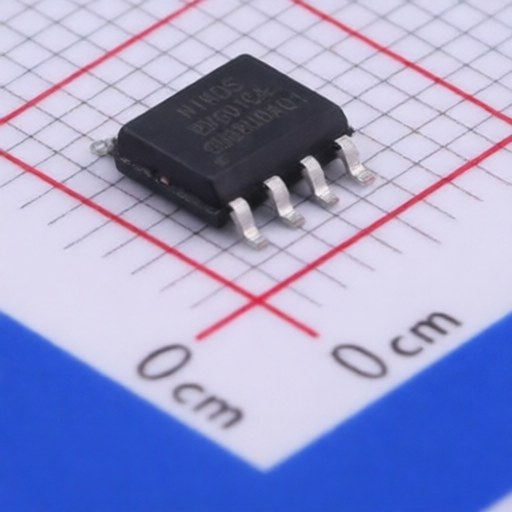

NIKO-SEM PV601CA
Manufacturer:
NIKO-SEM
Asian Brands
Mfr. Part #:
PV601CA
Package:
SOP-8
Customer #:
Description:
30V 7A 28mΩ@4.5V,6.4A 2.5V@250uA 1 N-Channel + 1 P-Channel 2W SOP-8 Single FETs, MOSFETs RoHS
Datasheet:
NIKO-SEM PV601CA
Products Specifications
Manufacturer:
Package:
SOP-8
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
7A
Operating Temperature -:
-55℃~+150℃
RDS(on):
28mΩ@4.5V,6.4A
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
113pF@15V
Number:
1 N-Channel + 1 P-Channel
Input Capacitance(Ciss):
817pF@15V
Pd - Power Dissipation:
2W
Gate Charge(Qg):
20nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
NIKO-SEM
64 Products
NIKO SEMICONDUCTOR CO., LTD. (NIKO-SEM) was established in 1998 and headquartered in Taipei, as a premier company of the IC design industry, with focus on the high performance power management components and the analog ICs. NIKO-SEM’s main products include Power MOSFET, linear Regulator, Switching Regulator and Control IC which are widely applied in the main-boards, VGA cards, LCD TVs, LCD Monitors, Power Adapters, Laptop Computers, Telecom & Network Equipments, etc.
