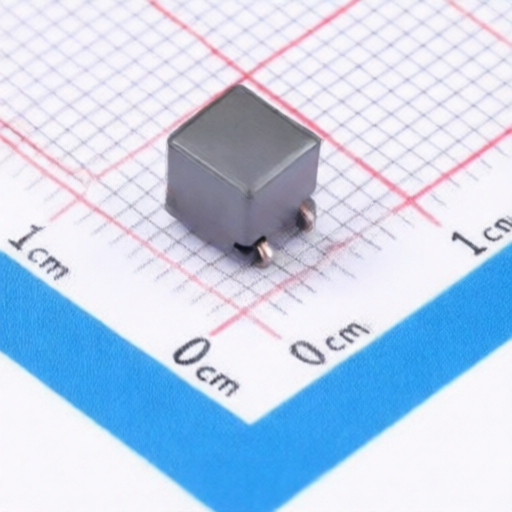

muRata PLT5BPH1015R6SNL
Manufacturer:
muRata
Mfr. Part #:
PLT5BPH1015R6SNL
Package:
SMD-4P,5x5mm
Customer #:
Key Attributes:
CMC 2.9A 2LN 100Ω SMD
Description:
2Line Common Mode Choke Surface Mount-4P 5x5mm 100Ω@10MHz 2.9A DCR 5mΩ
Datasheet:
muRata PLT5BPH1015R6SNL
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,5x5mm
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-55℃~+150℃
DC Resistance(DCR):
5mΩ
Voltage Rating - DC:
80V
Number of Lines:
2
Voltage Withstand:
200V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 300 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
