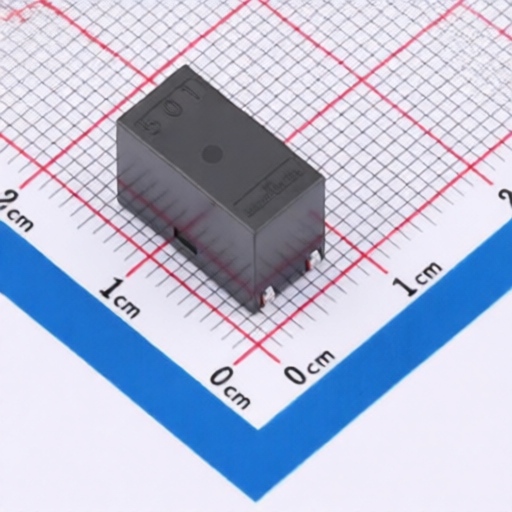

muRata PLT10HH501100PNL
Manufacturer:
muRata
Mfr. Part #:
PLT10HH501100PNL
Package:
Through Hole
Customer #:
Key Attributes:
CMC 9uH 10A 2LN 500Ω TH
Description:
9uH@1kHz 2Line Common Mode Choke Through Hole 500Ω@10MHz 10A DCR 3.6mΩ
Datasheet:
muRata PLT10HH501100PNL
Products Specifications
Category:
Manufacturer:
Package:
Through Hole
Inductance @ Frequency:
9uH@1kHz
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-55℃~+105℃
DC Resistance(DCR):
3.6mΩ
Voltage Rating - DC:
100V
Number of Lines:
2
Voltage Withstand:
250V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 125 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
