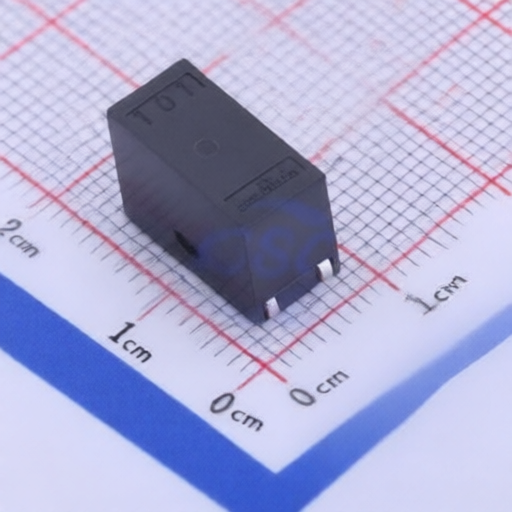

muRata PLT10HH101150PNL
Manufacturer:
muRata
Mfr. Part #:
PLT10HH101150PNL
Package:
SMD
Customer #:
Key Attributes:
CMC 15A 2LN 100Ω SMD
Description:
2Line Common Mode Choke Surface Mount 100Ω@10MHz 15A DCR 2.3mΩ
Datasheet:
muRata PLT10HH101150PNL
Products Specifications
Category:
Manufacturer:
Package:
SMD
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-55℃~+125℃
DC Resistance(DCR):
2.3mΩ
Voltage Rating - DC:
300V
Number of Lines:
2
Voltage Withstand:
750V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 125 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
