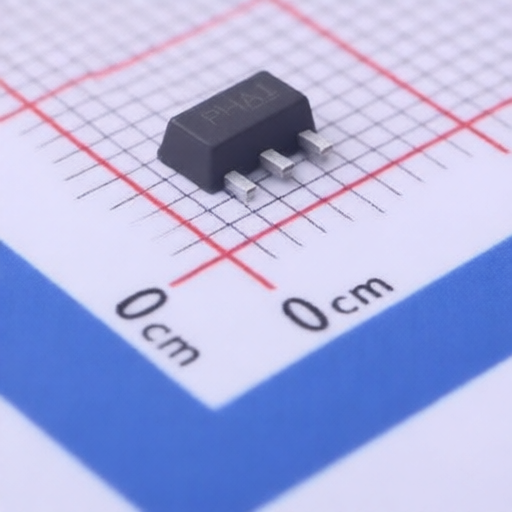

Mini-Circuits PHA-1+
Manufacturer:
Mini-Circuits
Mfr. Part #:
PHA-1+
Package:
SOT-89-3
Customer #:
Key Attributes:
Ultra High Dynamic Range Monolithic Amplifier 0.05 - 6GHz
Description:
4.8V~5.2V 13.5dB 50MHz~6GHz 2.2dB 22.4dBm 146mA SOT-89-3 RF Amplifiers RoHS
Datasheet:
Mini-Circuits PHA-1+
Products Specifications
Category:
Manufacturer:
Package:
SOT-89-3
Voltage - Supply:
4.8V~5.2V
Gain:
13.5dB
Input Return Loss:
11.3dB
Frequency Range:
50MHz~6GHz
Output Return Loss:
17.1dB
Noise Figure:
2.2dB
IP3:
42dBm
P1dB:
22.4dBm
Current - Supply:
146mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
