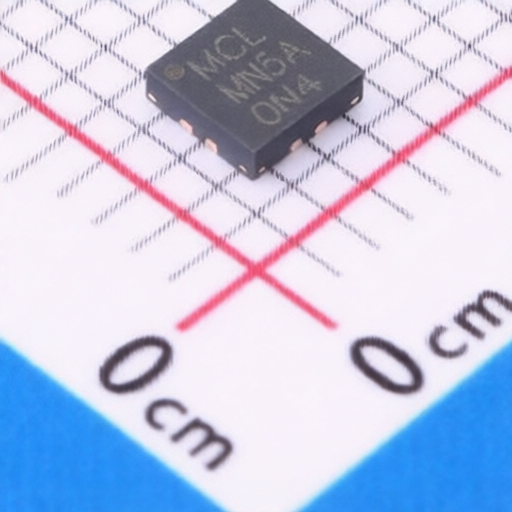

Mini-Circuits MNA-5A+
Manufacturer:
Mini-Circuits
Mfr. Part #:
MNA-5A+
Package:
QFN-8(3x3)
Customer #:
Key Attributes:
High Directivity Monolithic Amplifier
Description:
19.2dB 2.8V~5V 500MHz~2.5GHz 3.2dB 34mA QFN-8(3x3) RF Amplifiers RoHS
Datasheet:
Mini-Circuits MNA-5A+
Products Specifications
Category:
Manufacturer:
Package:
QFN-8(3x3)
Operating Temperature:
-40℃~+85℃
Gain:
19.2dB
Voltage - Supply:
2.8V~5V
Frequency Range:
500MHz~2.5GHz
Noise Figure:
3.2dB
Current - Supply:
34mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
