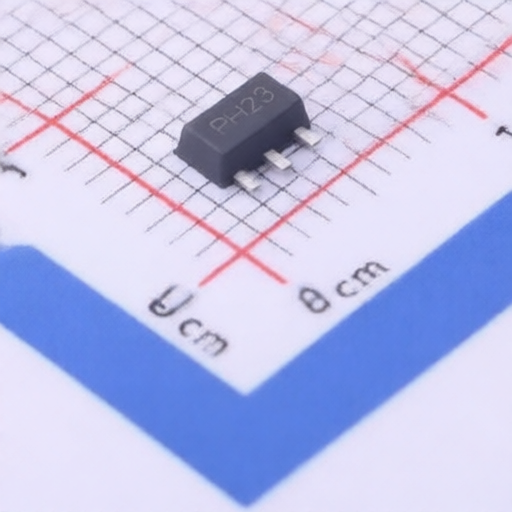

Mini-Circuits PHA-13HLN+
Manufacturer:
Mini-Circuits
Mfr. Part #:
PHA-13HLN+
Package:
SOT-89-3
Customer #:
Key Attributes:
Ultra High Dynamic Range Monolithic Amplifier 1MHz to 1 GHz
Description:
8V 1MHz~1GHz 20.4dB 1.1dB 28.7dBm 234.1mA SOT-89-3 RF Amplifiers RoHS
Datasheet:
Mini-Circuits PHA-13HLN+
Products Specifications
Category:
Manufacturer:
Package:
SOT-89-3
Input Return Loss:
17.5dB
Voltage - Supply:
8V
Frequency Range:
1MHz~1GHz
Gain:
20.4dB
Output Return Loss:
17.7dB
Noise Figure:
1.1dB
IP3:
43dBm
P1dB:
28.7dBm
Current - Supply:
234.1mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
