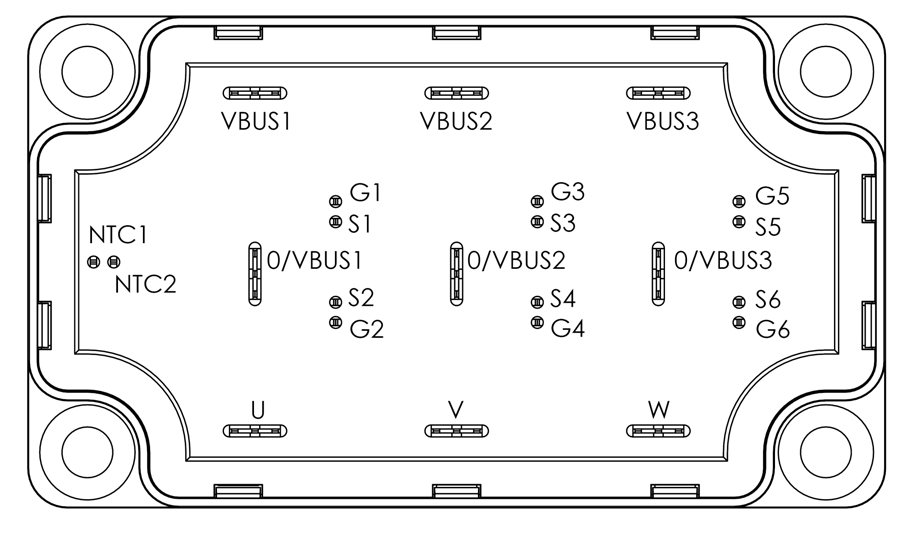

MICROCHIP APTC60TAM21SCTPAG
Manufacturer:
MICROCHIP
Mfr. Part #:
APTC60TAM21SCTPAG
Package:
-
Customer #:
Description:
600V 116A 21mΩ@10V,88A 3.6V@6mA 625W Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP APTC60TAM21SCTPAG
Products Specifications
Manufacturer:
Package:
-
Configuration:
Three-phase bridge
Drain to Source Voltage:
600V
Current - Continuous Drain(Id):
116A
Operating Temperature -:
-40℃~+150℃
RDS(on):
21mΩ@10V,88A
Gate Threshold Voltage (Vgs(th)):
3.6V@6mA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
-
Number:
-
Output Capacitance(Coss):
720pF
Input Capacitance(Ciss):
13nF
Pd - Power Dissipation:
625W
Gate Charge(Qg):
580nC@10V
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
