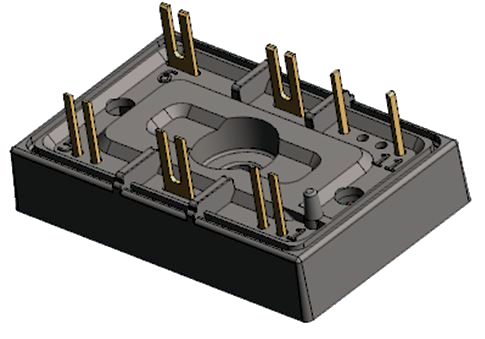

MICROCHIP MSCSM120DUM31CTBL1NG
Manufacturer:
MICROCHIP
Mfr. Part #:
MSCSM120DUM31CTBL1NG
Package:
-
Customer #:
Description:
1.2kV 79A 31mΩ@20V,40A 2 N-Channel 310W Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP MSCSM120DUM31CTBL1NG
Products Specifications
Manufacturer:
Package:
-
Configuration:
Common Source
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
79A
Operating Temperature -:
-55℃~+175℃
RDS(on):
31mΩ@20V,40A
Gate Threshold Voltage (Vgs(th)):
-
Type:
-
Reverse Transfer Capacitance (Crss@Vds):
25pF
Number:
2 N-Channel
Output Capacitance(Coss):
270pF
Pd - Power Dissipation:
310W
Input Capacitance(Ciss):
3.02nF
Gate Charge(Qg):
232nC@20V
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MICROCHIP
24560 Products
Microchip Technology
- Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
