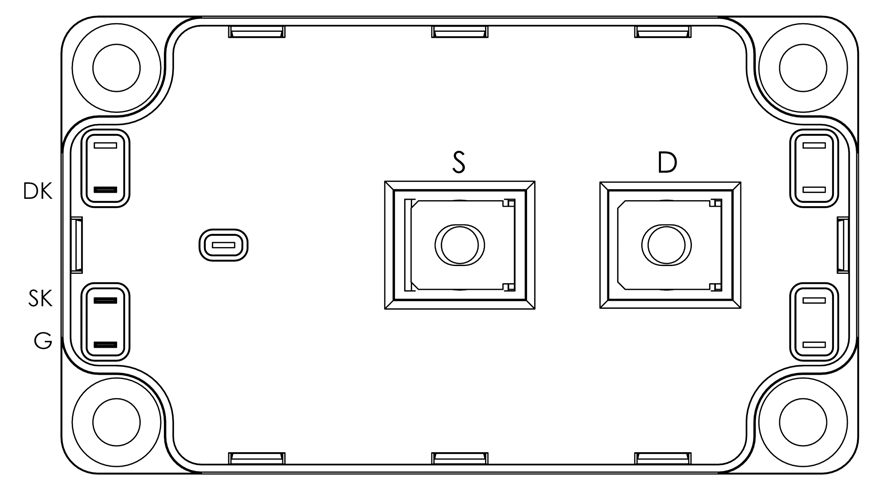

MICROCHIP APTM120UM70FAG
Manufacturer:
MICROCHIP
Mfr. Part #:
APTM120UM70FAG
Package:
-
Customer #:
Description:
1.2kV 171A 80mΩ@10V,85.5A 5V@30mA 1 N-channel 5kW Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP APTM120UM70FAG
Products Specifications
Manufacturer:
Package:
-
Drain to Source Voltage:
1.2kV
Current - Continuous Drain(Id):
171A
Operating Temperature -:
-40℃~+150℃
RDS(on):
80mΩ@10V,85.5A
Gate Threshold Voltage (Vgs(th)):
5V@30mA
Type:
-
Reverse Transfer Capacitance (Crss@Vds):
1.2nF
Number:
1 N-channel
Output Capacitance(Coss):
6.6nF
Pd - Power Dissipation:
5kW
Input Capacitance(Ciss):
43.5nF
Gate Charge(Qg):
1.65uC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
