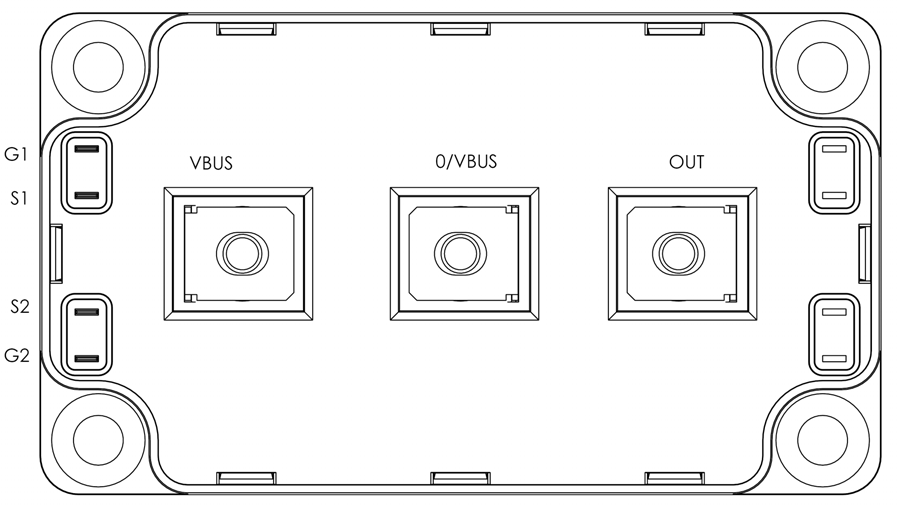

MICROCHIP APTM10AM02FG
Manufacturer:
MICROCHIP
Mfr. Part #:
APTM10AM02FG
Package:
-
Customer #:
Description:
100V 495A 2.5mΩ@10V,200A 4V@10mA 2 N-Channel 1.25kW Single FETs, MOSFETs RoHS
Datasheet:
MICROCHIP APTM10AM02FG
Products Specifications
Manufacturer:
Package:
-
Configuration:
-
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
495A
Operating Temperature -:
-40℃~+150℃
RDS(on):
2.5mΩ@10V,200A
Gate Threshold Voltage (Vgs(th)):
4V@10mA
Type:
-
Reverse Transfer Capacitance (Crss@Vds):
5.9nF
Number:
2 N-Channel
Output Capacitance(Coss):
15.7nF
Input Capacitance(Ciss):
40nF
Pd - Power Dissipation:
1.25kW
Gate Charge(Qg):
1.36uC@10V
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
