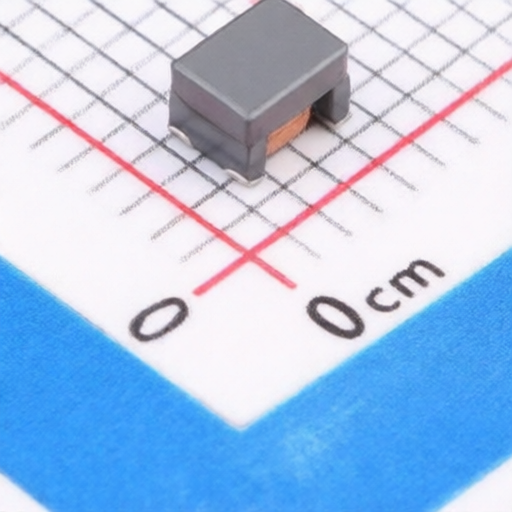

MetalLions ACT1210-220-2P-TF
Manufacturer:
MetalLions
Asian Brands
Mfr. Part #:
ACT1210-220-2P-TF
Package:
SMD-4P,3.3x2.5mm
Customer #:
Key Attributes:
CMC 22uH 250mA 2LN 500Ω SMD
Description:
22uH@100kHz 2Line Common Mode Choke Surface Mount-4P 3.3x2.5mm 500Ω@10MHz 250mA DCR 500mΩ
Datasheet:
MetalLions ACT1210-220-2P-TF
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,3.3x2.5mm
Inductance @ Frequency:
22uH@100kHz
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-55℃~+150℃
DC Resistance(DCR):
500mΩ
Voltage Rating (AC):
80V
Voltage Rating - DC:
80V
Number of Lines:
2
Voltage Withstand:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MetalLions
385 Products
MetalLions Electronics Co., Ltd.
(hereinafter referred to as "MetalLions") was founded in 1998. The founding team has been deeply involved in the field of inductance and magnetic material science for more than 30 years, and has always been firmly focused on the research and development of materials, technology, production processes and equipment for inductance products. The company's products include chip power inductors, precision winding inductors, RF inductors, common mode inductors, etc., which are widely used in automotive electronics, network communications, Internet of Things, instrumentation, security, smart home, medical equipment, LED lighting, photovoltaic energy storage, consumer digital and other fields. MetalLions produces about 10 billion inductors of various categories annually. MetalLions provides not only high-quality products, but also provides customers with comprehensive and optimal inductance solutions.
