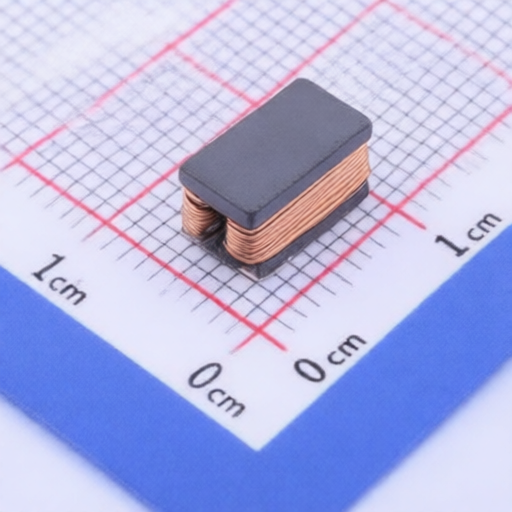

MetalLions ACM855050F-202T15
Manufacturer:
MetalLions
Asian Brands
Mfr. Part #:
ACM855050F-202T15
Package:
SMD-4P,8.5x5mm
Customer #:
Key Attributes:
CMC 1.5A 2LN 2.2kΩ SMD
Description:
2Line Common Mode Choke Surface Mount 8.5x5x5.1mm 2.2kΩ@100MHz 1.5A DCR 65mΩ
Datasheet:
MetalLions ACM855050F-202T15
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,8.5x5mm
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
65mΩ
Voltage Rating - DC:
50V
Number of Lines:
2
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
MetalLions
385 Products
MetalLions Electronics Co., Ltd.
(hereinafter referred to as "MetalLions") was founded in 1998. The founding team has been deeply involved in the field of inductance and magnetic material science for more than 30 years, and has always been firmly focused on the research and development of materials, technology, production processes and equipment for inductance products. The company's products include chip power inductors, precision winding inductors, RF inductors, common mode inductors, etc., which are widely used in automotive electronics, network communications, Internet of Things, instrumentation, security, smart home, medical equipment, LED lighting, photovoltaic energy storage, consumer digital and other fields. MetalLions produces about 10 billion inductors of various categories annually. MetalLions provides not only high-quality products, but also provides customers with comprehensive and optimal inductance solutions.
