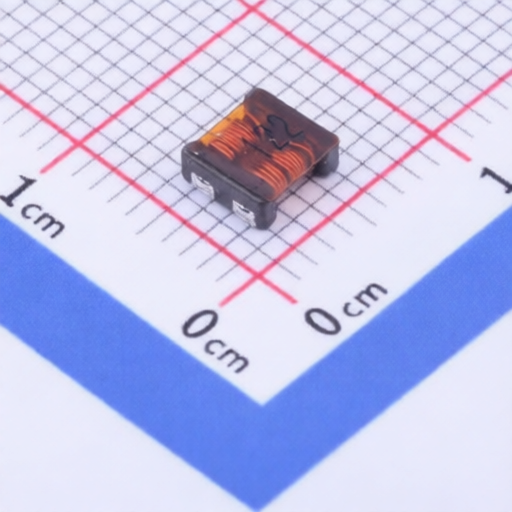

MetalLions ACM4520F-122T20
Manufacturer:
MetalLions
Asian Brands
Mfr. Part #:
ACM4520F-122T20
Package:
SMD-4P,4.7x4.5mm
Customer #:
Key Attributes:
CMC 2A 2LN 1.2kΩ SMD
Description:
2Line Common Mode Choke Surface Mount 4.7x4.5x2mm 1.2kΩ@100MHz 2A DCR 74mΩ
Datasheet:
MetalLions ACM4520F-122T20
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,4.7x4.5mm
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
74mΩ
Voltage Rating - DC:
50V
Number of Lines:
2
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
