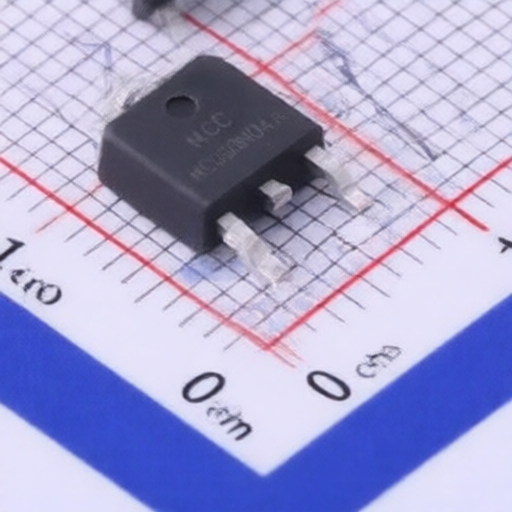

MCC MCU60N04A-TP

Name: MCC MCU60N04A-TP
Brand: MCC

Manufacturer: MCC

Mfr. Part #: MCU60N04A-TP

Package: DPAK

Customer #:

Description: 40V 60A 7mΩ@10V,20A 900mV 1 N-channel 70W DPAK Single FETs, MOSFETs RoHS

Datasheet: MCC MCU60N04A-TP

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MCC

Package:

DPAK

Drain to Source Voltage:

40V

Current - Continuous Drain(Id):

60A

Operating Temperature -:

-55℃~+150℃@(Tj)

RDS(on):

7mΩ@10V,20A

Gate Threshold Voltage (Vgs(th)):

900mV

Reverse Transfer Capacitance (Crss@Vds):

170pF@20V

Number:

1 N-channel

Input Capacitance(Ciss):

1.65nF@20V

Pd - Power Dissipation:

70W

Gate Charge(Qg):

27nC@10V

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	2500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
