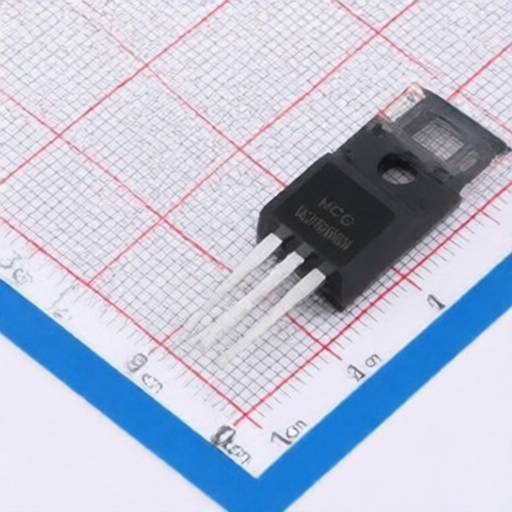

MCC MSJPF06N80A-BP

MCC MSJPF06N80A-BP

Name: MCC MSJPF06N80A-BP
Brand: MCC

Manufacturer: MCC

Mfr. Part #: MSJPF06N80A-BP

Package: TO-220F

Customer #:

Key Attributes: MOSFET N-CH 800V 6A TO-220F

Description: N-Channel 800V 6A 22W Through Hole TO-220F

Datasheet: MCC MSJPF06N80A-BP

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MCC

Package:

TO-220F

Drain to Source Voltage:

800V

Current - Continuous Drain(Id):

RDS(on):

1.2Ω@10V,2.5A

Operating Temperature -:

-55℃~+150℃

Gate Threshold Voltage (Vgs(th)):

4.5V

Reverse Transfer Capacitance (Crss@Vds):

0.9pF@100V

Number:

1 N-channel

Pd - Power Dissipation:

22W

Input Capacitance(Ciss):

349pF@100V

Gate Charge(Qg):

11nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	50
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
