MCC MCB70N10YB-TP

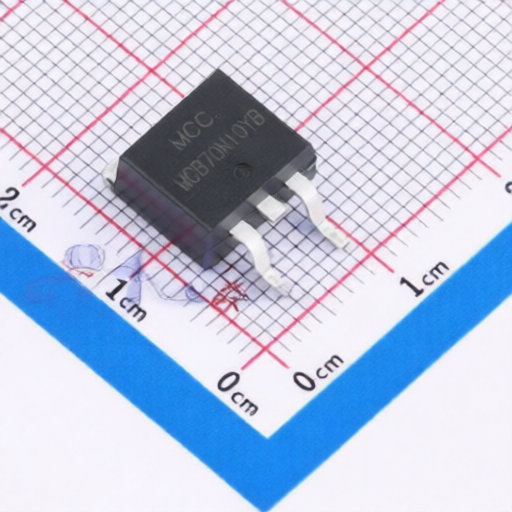

MCC MCB70N10YB-TP

Name: MCC MCB70N10YB-TP
Brand: MCC

Manufacturer: MCC

Mfr. Part #: MCB70N10YB-TP

Package: D2PAK

Customer #:

Key Attributes: MOSFET N-CH 100V 70A D2PAK

Description: N-Channel 100V 70A 125W Surface Mount D2PAK

Datasheet: MCC MCB70N10YB-TP

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MCC

Package:

D2PAK

Drain to Source Voltage:

100V

Current - Continuous Drain(Id):

70A

RDS(on):

7.2mΩ@10V;10mΩ@6V

Operating Temperature -:

-55℃~+150℃

Gate Threshold Voltage (Vgs(th)):

2.8V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

13.9pF

Number:

1 N-channel

Output Capacitance(Coss):

801pF

Pd - Power Dissipation:

125W

Input Capacitance(Ciss):

2.365nF

Gate Charge(Qg):

31nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	800
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

MCC

1527 Products

International Brand

Micro Commercial Components (MCC) is a global supplier and manufacturer of commodity type and state-of-the-art innovative discrete semiconductors. Micro Commercial Components product groups include general purpose rectifiers, bridge rectifiers, transient voltage suppressors, as well as switching and Schottky diodes. Micro Commercial Components products are available in various axial leaded and surface mount packages.
