MagnaChip Semicon MDT15N054PTRH

MagnaChip Semicon MDT15N054PTRH

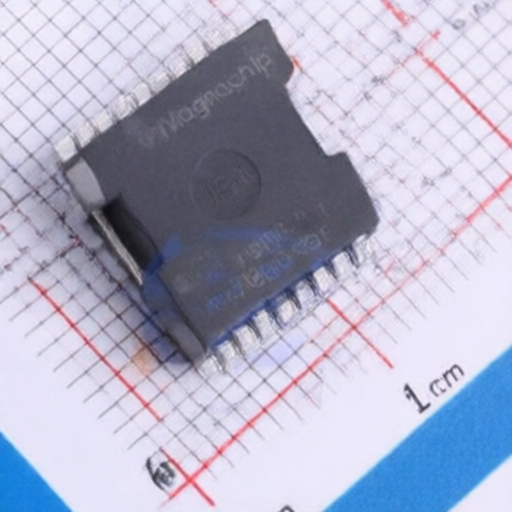

Name: MagnaChip Semicon MDT15N054PTRH
Brand: MagnaChip Semicon

Manufacturer: MagnaChip Semicon

Mfr. Part #: MDT15N054PTRH

Package: TOLL

Customer #:

Description: 150V 191A 4.63mΩ@10V 3.1V 517W TOLL Single FETs, MOSFETs RoHS

Datasheet: MagnaChip Semicon MDT15N054PTRH

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MagnaChip Semicon

Package:

TOLL

Drain to Source Voltage:

150V

Current - Continuous Drain(Id):

191A

RDS(on):

4.63mΩ@10V

Operating Temperature -:

-55℃~+175℃

Gate Threshold Voltage (Vgs(th)):

3.1V

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

15pF

Output Capacitance(Coss):

688pF

Pd - Power Dissipation:

517W

Input Capacitance(Ciss):

6.418nF

Gate Charge(Qg):

90nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	2000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
