MagnaChip Semicon MDU04N010VRH

MagnaChip Semicon MDU04N010VRH

Name: MagnaChip Semicon MDU04N010VRH
Brand: MagnaChip Semicon

Manufacturer: MagnaChip Semicon

Mfr. Part #: MDU04N010VRH

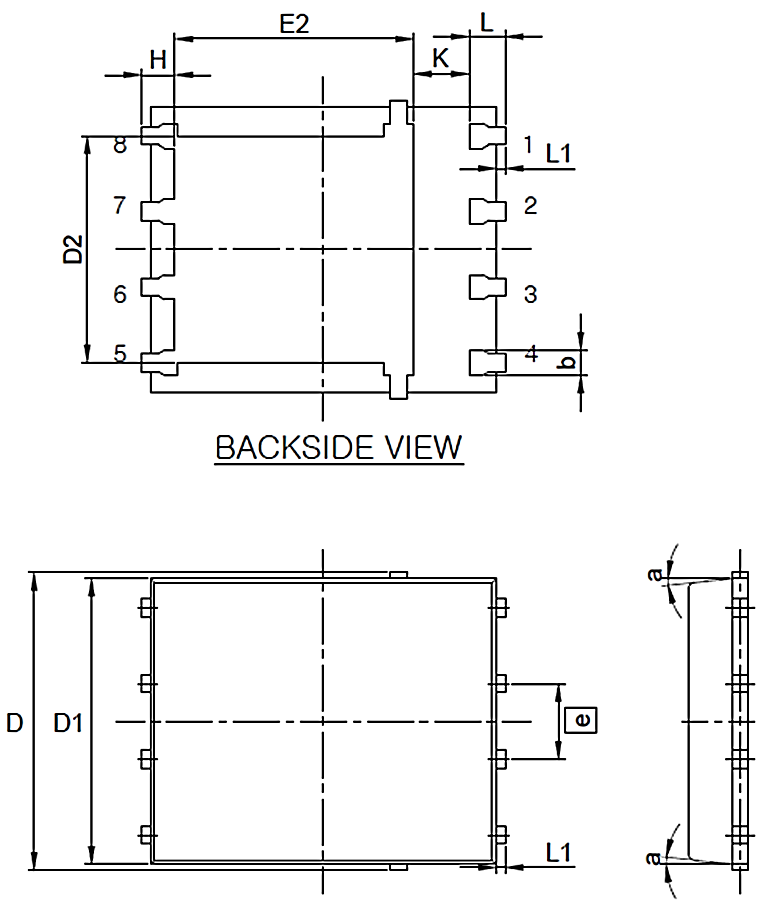

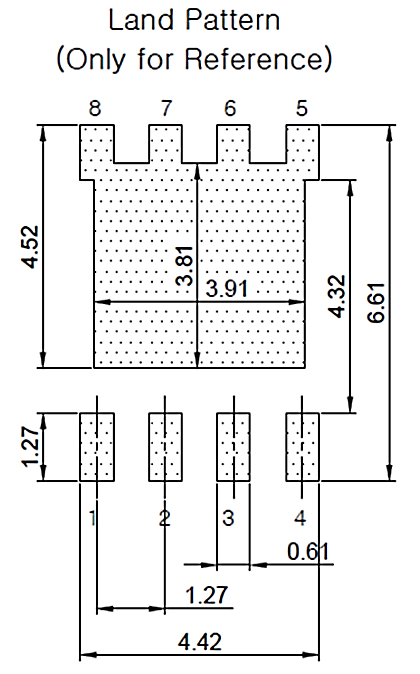

Package: PDFN56

Customer #:

Description: 40V 100A 0.8mΩ@10V 2V 1 N-channel 96.2W PDFN56 Single FETs, MOSFETs RoHS

Datasheet: MagnaChip Semicon MDU04N010VRH

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MagnaChip Semicon

Package:

PDFN56

Drain to Source Voltage:

40V

Current - Continuous Drain(Id):

100A

RDS(on):

0.8mΩ@10V

Operating Temperature -:

-55℃~+150℃

Gate Threshold Voltage (Vgs(th)):

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

147pF

Number:

1 N-channel

Pd - Power Dissipation:

96.2W

Output Capacitance(Coss):

2.058nF

Input Capacitance(Ciss):

6.892nF

Gate Charge(Qg):

103.5nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	5000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
