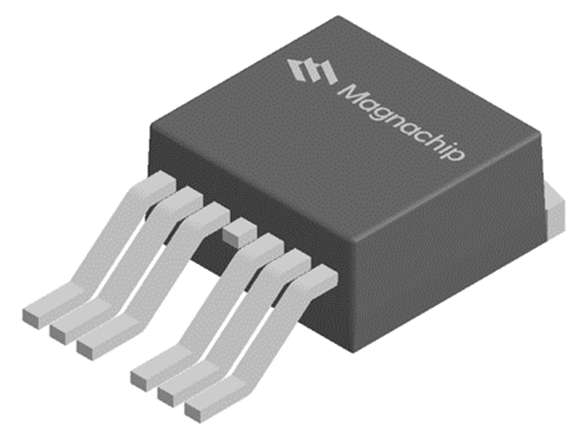

MagnaChip Semicon MDES14N045RH

MagnaChip Semicon MDES14N045RH

Name: MagnaChip Semicon MDES14N045RH
Brand: MagnaChip Semicon

Manufacturer: MagnaChip Semicon

Mfr. Part #: MDES14N045RH

Package: D2PAK-7L

Customer #:

Description: 135V 180A 3.8mΩ@10V 3.9V D2PAK-7L Single FETs, MOSFETs RoHS

Datasheet: MagnaChip Semicon MDES14N045RH

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

MagnaChip Semicon

Package:

D2PAK-7L

Drain to Source Voltage:

135V

Current - Continuous Drain(Id):

180A

RDS(on):

3.8mΩ@10V

Operating Temperature -:

-55℃~+175℃

Gate Threshold Voltage (Vgs(th)):

3.9V

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

27pF

Output Capacitance(Coss):

923pF

Input Capacitance(Ciss):

9.267nF

Gate Charge(Qg):

123nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	800
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
