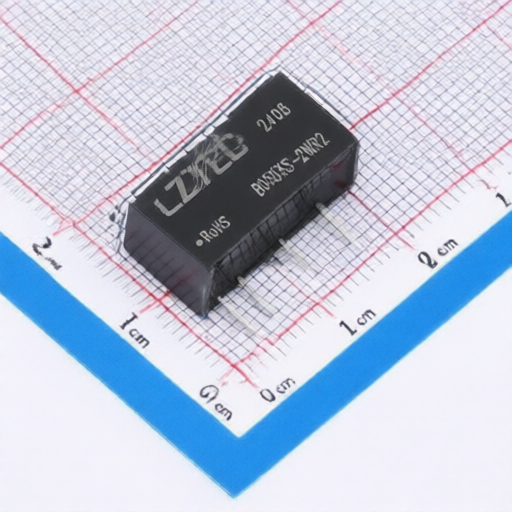

LZTEC B0503S-2WR2
Manufacturer:
LZTEC
Asian Brands
Mfr. Part #:
B0503S-2WR2
Package:
SIP,19.6x7mm
Customer #:
Key Attributes:
DC/DC power module, 2W, fixed voltage, unregulated
Description:
Isolated Module DC DC Converter Boost 1 Output 3.3V 606mA 4.5V~5.5V Input
Datasheet:
LZTEC B0503S-2WR2
Products Specifications
Manufacturer:
Package:
SIP,19.6x7mm
Height:
10.16mm
Vin:
4.5V~5.5V
Vout:
3.3V
Operating Temperature:
-40℃~+85℃
Capacitive Load(Max):
2400uF
Number of Outputs:
1
Ripple:
60mVp-p
Iout:
606mA
Length:
19.65mm
Width:
7.05mm
Frequency - Switching:
250kHz
Conversion Efficiency:
83%
Output Power:
2W
Features:
Short Circuit Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 18 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
