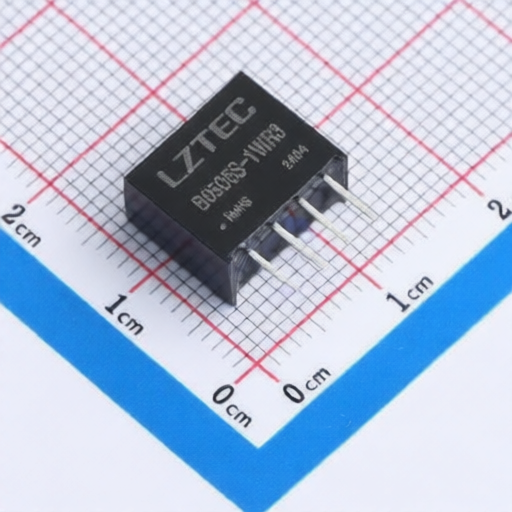

LZTEC B0505S-1WR3
Manufacturer:
LZTEC
Asian Brands
Mfr. Part #:
B0505S-1WR3
Package:
SIP,11.5x6.1mm
Customer #:
Key Attributes:
DC/DC power module, 1W, fixed voltage, unregulated
Description:
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V~5.5V Input
Datasheet:
LZTEC B0505S-1WR3
Products Specifications
Manufacturer:
Package:
SIP,11.5x6.1mm
Height:
10.16mm
Vin:
4.5V~5.5V
Vout:
5V
Operating Temperature:
-40℃~+85℃
Capacitive Load(Max):
2400uF
Number of Outputs:
1
Ripple:
50mVp-p
Length:
11.6mm
Iout:
200mA
Width:
6mm
Frequency - Switching:
220kHz
Isolation Voltage(Vrms):
1.5kV
Conversion Efficiency:
84%
Output Power:
1W
Features:
Short Circuit Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
LZTEC
519 Products
LZTEC is dedicated to the research, development, market application, and sales services of power supply products. We strive to provide superior, convenient, and safe power solutions through continuous product innovation and enhanced customer service. Our primary focus is on the production of power supply products.
