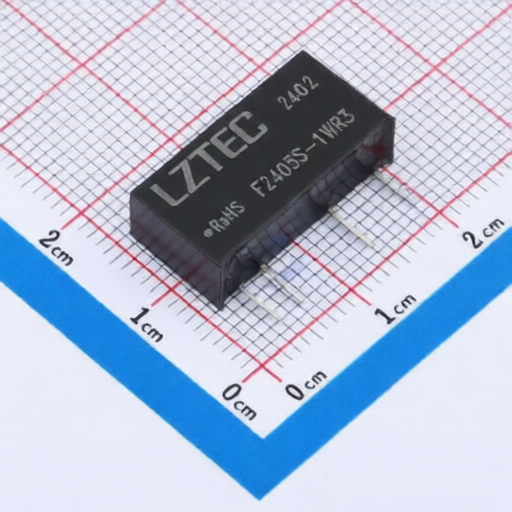

LZTEC F2405S-1WR3
Manufacturer:
LZTEC
Asian Brands
Mfr. Part #:
F2405S-1WR3
Package:
SIP,19.6x6mm
Customer #:
Key Attributes:
DC/DC power module, 1W, fixed voltage, unregulated
Description:
Isolated Module DC DC Converter 5V 200mA 21.6V~26.4V Input
Datasheet:
LZTEC F2405S-1WR3
Products Specifications
Manufacturer:
Package:
SIP,19.6x6mm
Height:
10.16mm
Vin:
21.6V~26.4V
Vout:
5V
Operating Temperature:
-40℃~+105℃
Capacitive Load(Max):
2400uF
Ripple:
45mVp-p
Length:
19.65mm
Iout:
200mA
Width:
6mm
Frequency - Switching:
220kHz
Isolation Voltage(Vrms):
3kV
Conversion Efficiency:
87%
Output Power:
1W
Features:
Short Circuit Protection
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 18 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
