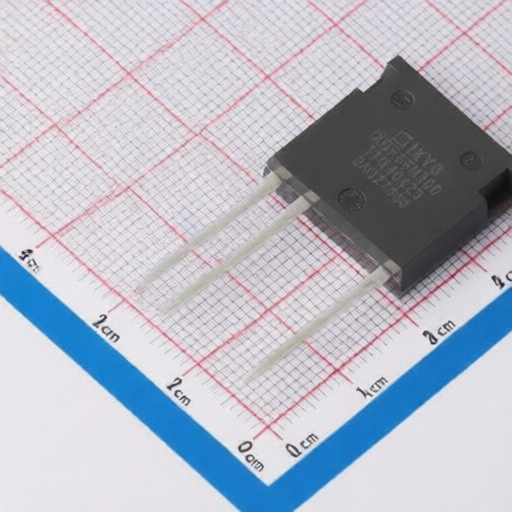

Littelfuse/IXYS IXBF55N300
Manufacturer:
Littelfuse/IXYS
Mfr. Part #:
IXBF55N300
Package:
ISOPLUSi4-Pak
Customer #:
Key Attributes:
IGBT 3kV 86A ISOPLUSi4-Pak
Description:
IGBT 3kV 86A 357W Surface Mount ISOPLUSi4-Pak
Datasheet:
Littelfuse/IXYS IXBF55N300
Products Specifications
Manufacturer:
Package:
ISOPLUSi4-Pak
Td(off):
230ns
Pd - Power Dissipation:
357W
Td(on):
52ns
Collector-Emitter Breakdown Voltage (Vces):
3kV
Input Capacitance(Cies):
-
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.2V@15V,55A
Gate Charge(Qg):
335nC
Operating Temperature:
-55℃~+150℃@(Tj)
Output Capacitance(Coes):
275pF
Reverse Recovery Time(trr):
1.9us
Turn-On Energy (Eon):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Littelfuse/IXYS
3888 Products
IXYS Corporation is a global supplier of power management semiconductors with a comprehensive range of Power MOSFET, IGBT, bipolar, and mixed-signal IC solutions that provide improved efficiency and reduced energy costs in a wide range of power system applications.
